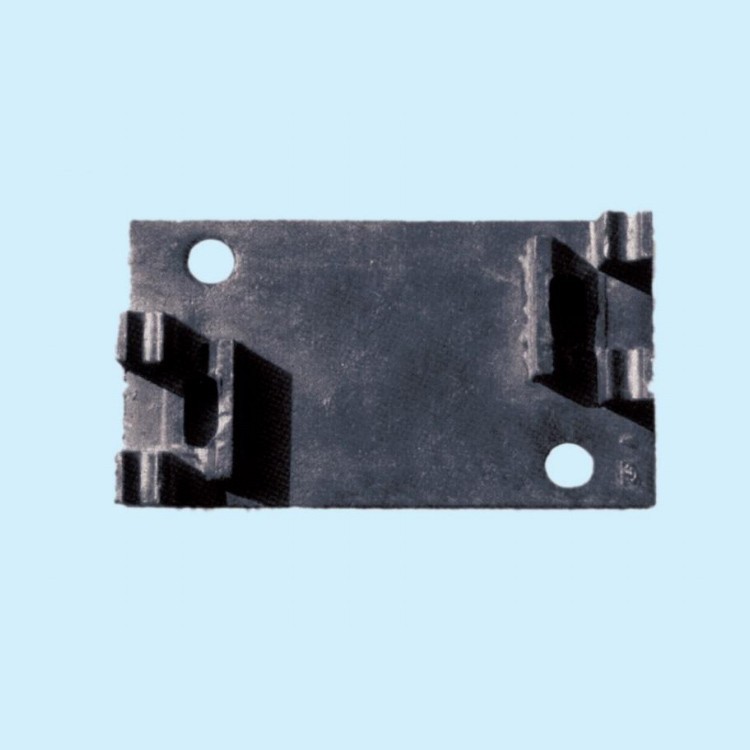

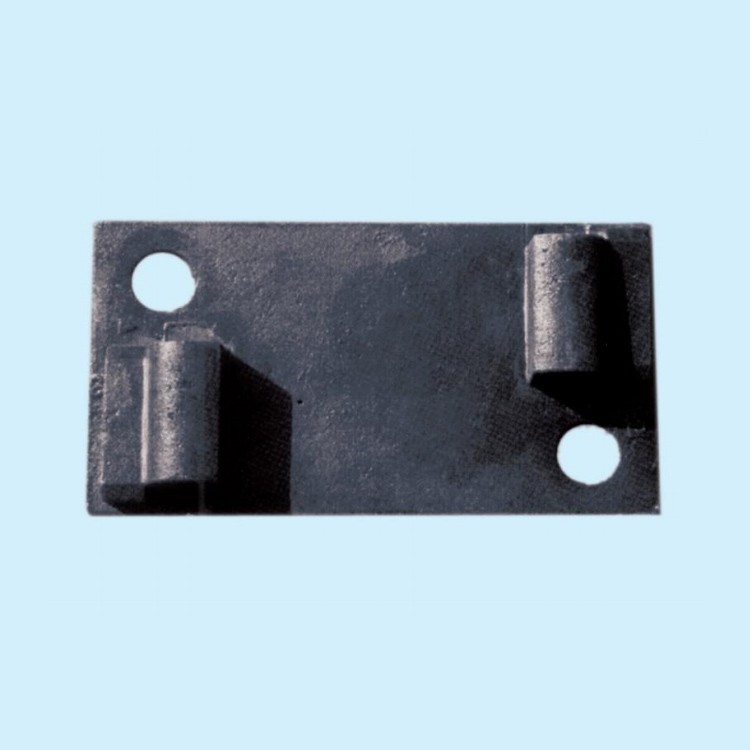

Railroad Track Tie Plates
Product Introduction Our railroad track tie plates are precision-engineered components that optimize rail-to-tie connections, extending track lifespan and improving operational safety. These critical interface elements distribute dynamic loads, prevent rail cutting into ties, and maintain proper...
Features
Product Introduction
Our railroad track tie plates are precision-engineered components that optimize rail-to-tie connections, extending track lifespan and improving operational safety. These critical interface elements distribute dynamic loads, prevent rail cutting into ties, and maintain proper gauge alignment under heavy traffic conditions.
Technical Specifications
| Parameter | Standard Series | Heavy-Duty Series | Vintage Railroad Track Tie Plates |
|---|---|---|---|
| Railroad Tie Plate Dimensions | 150×180×12mm | 200×250×15mm | 140×170×10mm |
| Railroad Tie Plate Weight | 4.8kg | 8.2kg | 3.6kg |
| Material | 1045 Carbon Steel | AR400 Alloy Steel | Reclaimed A36 Steel |
| Spike Holes | 4 | 6 | 4 (Historical Pattern) |
| Rail Compatibility | 80-115lb/yd | 132-175lb/yd | Classic 60-90lb/yd |
| Surface Treatment | Hot-Dip Galvanized | Epoxy Coating | Authentic Rust Patina |
Rail Infrastructure
Mainline track systems
Switch & crossing installations
Yard and spur trackage
Light rail transit networks
more
Key Product Features
Engineering Advantages
Optimized load distribution (35% better than standard plates)
Anti-creep shoulder design maintains track geometry
Precision-punched holes ensure proper spike alignment
Wear indicators for preventive maintenance
Material Innovations
Micro-alloyed steel formulations resist deformation
Dual-phase heat treatment enhances durability
Environmentally-safe coatings meet standards
Our factory & quipment
who choose us?
Proven 25% Longer Service Life than industry average
Shoulder Geometry reduces gauge widening
Custom Metallurgy available for extreme environments
3D-Modeled Designs optimized through FEA analysis
one-stop solution
professional team
high quality
Manufacturing Process
Laser-Blank Cutting (±0.15mm tolerance)
Precision Forging (1,200-ton hydraulic press)
CNC Hole Punching (location accuracy ±0.3mm)
Heat Treatment (computer-controlled quenching)
Surface Finishing (7-stage coating process)
FAQ
Q: What railroad tie plates for sale come in ready stock?
A: Our standard plates ship same-day (500+ units each)
Q: How do railroad tie plate dimensions affect performance?
A: Larger plates (200×250mm+) reduce tie stress by up to 40%
Q: Can tie plates in steel structures replace traditional base plates?
A: Yes - our AR400 series works well for column connections
Q: What's the weight difference between standard and heavy plates?
A: Heavy-duty versions weigh 70-100% more for greater stability
